John Deere Electric Pto Clutch Adjustment

Move pto clutch lever a to rearward disengaged position.

John deere electric pto clutch adjustment. Checking the mower gearbox oil level 1. The pto is the mechanism that turns on the blades located under the mower deck. Locate the three adjustment nuts around the clutch above the brake plates. Push the mower lift lever on the right side of the fender deck all the way forward and set the mower deck in its lowest position.

Slide the belt off from the bottom of the pto clutch located under the engine. The electric clutch is operated by a switch located on the dashboard of the lawn mower. Bundle 2 items. 4 7 out of 5 stars 167.

Once the air gap is within the specified range engage the clutch at full coil voltage and rotate it. Remove the check plug a from either side of the gearbox. There are also three springs one on each bolt that are put on that push against the outer frame of the clutch. Most john deere lawn mowers are equipped with an electric pto power take off.

If there is no contact on the brake shroud the clutch is okay. The pto works off of a 12 volt system. Wait until the gearbox is cool. Adjusting pto clutch to adjust the pto clutch see the service engine section.

There are normally 3 slots located 120 degrees apart on the the outer frame of the ptoclutch adjustment is with the three nuts that hold tension on the outer frame of the clutch. Replaces john deere pto clutch 145 155c 190c l120 l130 la130 140 145 150 155 165 175 d140 d170 mower gy20878. Remove clip pin b from forward end of pto clutch rod. Gearbox oil use 90w gear oil.

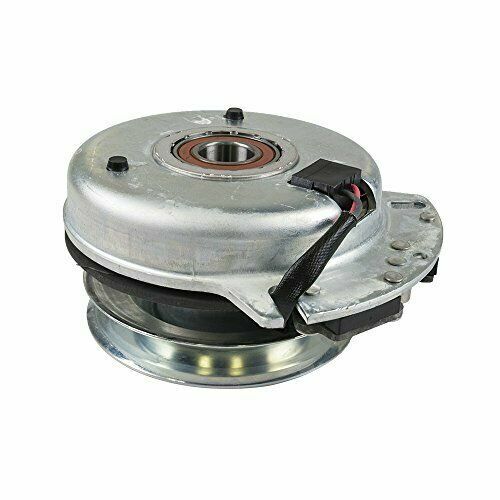

John deere electromagnetic pto clutch assembly. Xtreme outdoor power equipment 0424 jd gy20878 replaces john deere electric pto clutch l120 l130 mower. However if there is any contact with the brake shroud the gap adjustment nuts should be backed off slightly to eliminate the contact.
